Variable Frequency Drive – VFD

The VLT® AutomationDrive

t comes in a standard version (FC 301) and an advanced high dynamic version (FC 302) with additional functionalities. It helps save energy, increase flexibility, reduce costs related to spare parts and servicing, and optimize process control on any industrial machine or production line.

Enclosures are available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.

VLT® Micro Drive FC 51

Maximum strength with reduced installation costs

The VLT® Micro Drive FC 51 is small and yet powerful and built to last. Panel space can be saved and installation costs reduced thanks to its compact size and minimal commissioning requirements.

VLT FC051

VLT® Advanced Active Filter AAF 006

The flexible filter for central/decentral harmonic mitigation

AAF 006

The VLT® Advanced Active Filter AAF 006 improves system efficiency and increases grid robustness to avoid downtime. It can compensate for individual drives or it can be installed as a compact standalone solution at a point of common coupling to compensate for several loads simultaneously.

The active filter ensures optimal harmonic suppression independent of the number of loads and their individual load profile. In addition, it corrects the power factor and balances the phase load to provide optimal energy utilization.

VLT® HVAC Drive FC 102

Minimized lifecycle costs for HVAC applications

VLT FC 102

The VLT® HVAC Drive is designed to bring optimized process control to all heating, ventilation and air conditioning (HVAC) applications. Easy to use and with built-in intelligence, the drive is fast and cost-effective to commission. It features a wide range of functions specifically developed for use with, for example, pumps, fans and compressors to save energy, meet environmental regulations and reduce costs in modern buildings.

The compact design of the VLT® HVAC Drive and its efficient heat management system mean it is ideal for applications where drive space is restricted. A selection of safety features, such as Safe Torque Off and Safe Maximum Speed, protect both applications and their operators.

Maximum uptime is ensured as this robust drive offers problem-free operation in harsh environments. Enclosures are available up to IP 66 (depending on the model). And a special coating is available as an option to provide extra protection for circuit boards. Integrated DC chokes and RFI filters safeguard installations by minimizing harmonic distortion and electromagnetic interference.

VLT® Refrigeration Drive FC 103

Save energy and extend the lifetime of refrigeration applications

The VLT® Refrigeration Drive FC 103 is designed to help significantly reduce the life cycle costs of your refrigeration systems. It offers efficiency- and reliability-enhancing features, integrated process control functions and a commissioning environment specially designed to meet the needs of refrigeration applications. It also features a setup Wizard which uses common refrigeration terms. This makes installation and commissioning easy and safe for refrigeration technicians and installers.

The continuous variable speed control provided by the VLT Refrigeration Drive makes intelligent capacity control possible. By creating stability while balancing the capacity to the actual load, system-wide coefficient of performance improves providing significant energy savings in a wide range of applications. The drive contains all modules necessary for compliance with EMC standards. The integrated, scalable RFI filter minimizes electromagnetic interference, and the integral DC link chokes reduce harmonic distortion in the mains network. As these features are built in to the drive in the factory, cabinet space can be reduced. Efficient EMC mitigation also enables the use of cables with small cross sections which reduces installation costs.

VLT® AQUA Drive FC 202

Maximum energy efficiency for water and wastewater applications

The VLT® AQUA Drive is designed to provide the highest level of performance of AC-motor-driven water and wastewater applications. Featuring a wide range of powerful standard features, which can be expanded with performance-improving options, the drive is equally suited to both new and retrofit projects.

The considerable daily load variation in water or wastewater treatment plants makes it economically feasible to introduce motor control on rotating equipment such as pumps and blowers. The new generation VLT AQUA Drive can realistically offer first-year cost savings of between 10–30% compared to traditional drive solutions. Its high lifetime availability and low energy consumption and maintenance costs provide you with the lowest cost of ownership.

The quick and user-friendly setup of water and pump settings reduces installation time ensuring a fast route to maximum energy efficiency and motor control. By collecting the most important parameters in one place, the risk of incorrect configuration is reduced significantly.

VACON® 100 INDUSTRIAL DRIVE

One drive for a wide range of applications

VACON® 100 INDUSTRIAL is full of features and dedicated for a wide range of constant power/torque applications. The easy-to-use and robust motor controls improve the reliability and efficiency of all AC motor types, including induction and permanent magnet and synchronous reluctance motors.

Integrated RS485 and Ethernet interfaces support all major industrial protocols making VACON 100 INDUSTRIAL easy to incorporate into all major control systems. The built-in PLC functionality enables integration of new functionality into the drive. Functional safety is improved with Safe Torque Off, which prevents the motor from generating torque on the motor shaft, Safe Stop 1 and ATEX-certified motor over-temperature protection.

The wall-mountable drive modules are easy to install and operate, and the enclosed drives are provided with a wide range of integrated options.

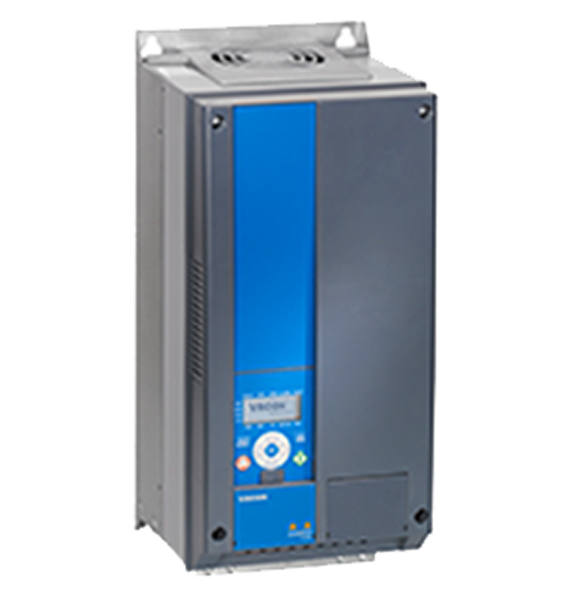

VACON® 20 Drive

Built-in functionality for enhanced control

Although extremely compact in size, the VACON® 20 is packed with functionality to help improve system performance and cost efficiency.

Fast installation and set-up are possible due to easy-access terminals, integral DIN rail mounting and the parameter copying tool which can clone settings without needing mains power. The parameter list can be freely modified and application-specific parameter sets and default settings can be created. PLC functionality means individual control logic can be built into the drive and unused I/O options can be used for other machine-related tasks.

The built-in RS-485 interface provides a cost-effective and simple serial-control interface for the drive. With optional modules, VACON 20 can be connected to almost any field bus system based on RS-485 or Ethernet, including Profibus DP, CANOpen, DeviceNet, Profinet I/O, EtherCAT, Modbus TCP/IP and Ethernet IP.

Available in all common voltages and in a wide power range, VACON 20 optimizes the performance of, for example, vertical-movement, packaging, material-handling and flow-control applications in various process industries around the globe.

VACON® NXP Air Cooled Drive

Precise and powerful performance

VACON® NXP Air Cooled drives offer precision and power to applications that require a robust and dynamic performance. Available in a complete power range up to 2 MW, they are provided as wall-mounted, standalone enclosed and IP00 modules.

The drives provide optimized motor control for both induction and permanent magnet motors, and gearless drive applications and paralleling solutions for high-power motors. Fast fieldbus options and exceptional programming flexibility ensure the drives are easily integrated into any plant’s automation system. Engineering time and costs can be saved due to the high number of standardized options and reduced system complexity.

VACON® NXP Common DC Bus

Easy integration – ultimate flexibility

The VACON® NXP range of common DC bus drive products includes a number of active front-ends, inverts and brake chopper units. They ensure all energy within a system is effectively utilized and redistributed.

Common DC bus components can be used in many different combinations. In a regenerative DC bus system, the active front-end unit generates power back to the mains network. This is suitable for processes where braking is needed often and the braking power is relatively high. In a non-regenerative system, braking power is redistributed to other drives in the system and possible excess power can be dissipated as heat using an optional brake chopper and brake resistors. This is ideal for small production lines where braking is needed less often.

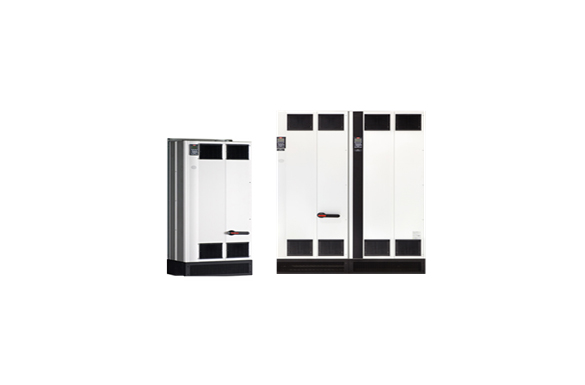

VACON® NXC Drive

Flexible, robust and serviceable

The enclosed VACON® NXC is the compact drive that performs reliably in harsh operating conditions in, for example, the mining, oil and gas or water and wastewater industries. The thermally managed enclosure extends drive lifetime and ensures trouble-free operation.

The enclosures, which feature lifting lugs for easy handling, can be either wall-mounted or free-standing. The easily accessible control compartment for relays, auxiliary terminals and other equipment, and ample space around the power terminals ensure straightforward installation and connection of power cables. And the mounting rails and pull-out jig enable fast and efficient servicing of the power unit.
